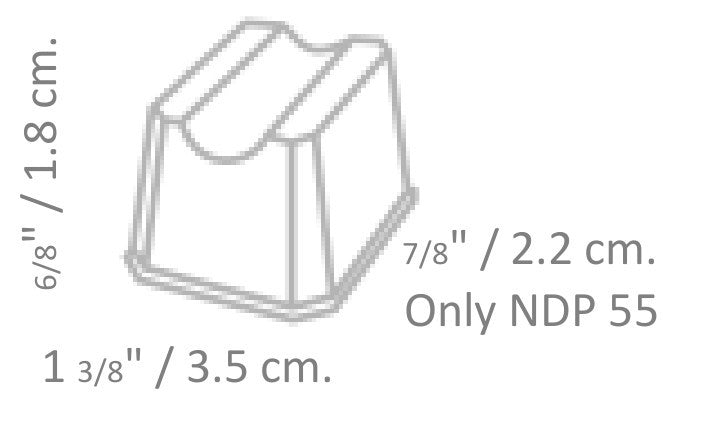

The design of the Alfa machines reflects a compromise between the volume and the quantity of pieces of ice. The result is a cube of straight lines and increased productivity – more cubes per cycle, which also optimizes the storage. Alpha machines achieve, therefore, the best correlation between production and cost.
The elastic shower system, patented by ITV, prevents limescale problems. The frontal in-out ventilation guarantees perfect ventilation. Separate thermostats help regulate both the production time and the amount of ice stored which helps to control the production accurately.
A cleaning switch allows water to circulate without the need to connect the cold water, which facilitates perfect system cleaning. The door, made of stainless steel, has a dampening system patented by ITV.
Standard equipment includes: ON/OFF switch; connection of water inlet, drainage, shovel to pick up the ice, Shuko cable connection and two mechanical filters.
SPRAY SYSTEM (NOZZLES): The spray nozzle, patented by ITV, does not allow calcareous build-up and produces solid transparent ice cubes which take longer to melt.
DYNAMIC PRODUCTION: The water is constantly circulating and the ice gradually forms in thin layers, avoiding trapped gasses and producing crystal clear ice cubes. Only the purest of ice cubes are produced.
SILENT RAIN: All parts in contact with water have been designed to minimize their friction resulting in a very low noise level.
DELECTROMECHANICAL CONTROLS: The machine works with electromechanical timer and thermostats. Simple, easy to comprehend and service. High reliability and low maintenance expense.
DUAL SWITCH: External switch allows to turn the machine on/off easily. Removing the top cover, we have the ice/ wash switch on one side of the electrical box.
STRONG INOX FRAME. 304 STAINLESS STEEL CONSTRUCTION: Box-type frame with stainless steel supports, makes the machine stronger and allows servicing operation without disassembling the entire machine.
EASY ACCESS FOR SERVICE AND INSTALLATION: Designed to have better access to all components making installation and servicing operations easier. One person can disassemble the entire machine with a basic screwdriver.
FRONT VENTILATION: Condensing unit permits 100% front ventilation, air inflow and outflow through the front grill.
INSULATED STORAGE BIN: Storage bin with polyurethane foam insulation gives higher rigidity with lower heat transmission. Isolated but not refrigerated bins.
OPERATING LIMITS: Tropicalized machines (Class T); Suitable for high temperature environments of 109S04;F (43S04;C). Water pressure ice maker: Min. 10 psi. (0.7 bar.)/ Max. 85 psi. (6 bar.). NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi. (6 bar.).
ELECTRICAL SPECIFICATIONS: 115V/60Hz./1 – Fuse Size 15-20 – Nema Plug Type 5-15P. Also available 208-230V/60Hz. – 220V/50Hz. NG 355—208-230V/60Hz./1. Also available 220V/50Hz.
WARRANTY: 36 months parts and labor + 24 additional months parts on compressor and evaporator.
Dimensions (in) -
Alpha Under-Counter Ice Maker Series

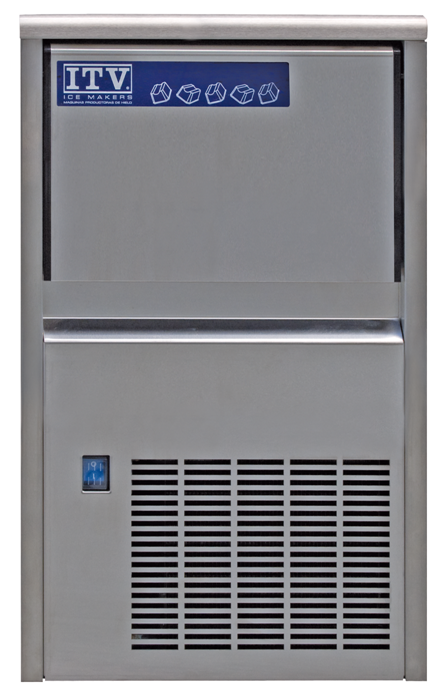

NDP 55 - 13.875 x 18.5 x 23.25
NG 75 - 16 x 20.25 x 29.625
NG 95 - 18.25 x 23.375 x 31.25
NG 135 - 21.125 x 23.375 x 31.25
Alpha Self-Contained Ice Maker Series

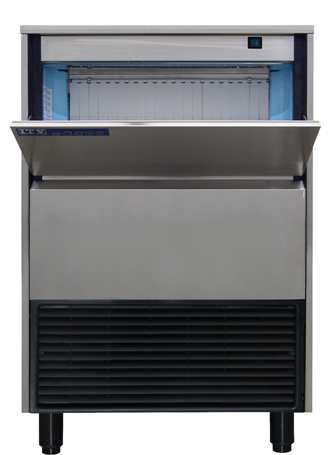

NG 175 - 28.25 x 23.375 x 37.125
NG 265 - 28.25 x 23.625 x 41.375
NG 355 - 33.875 x 25.625 x 41.375
Full general specifications for each model can be found on the links below:
